Understanding Vector Databases

Vector databases are specialized database systems designed to store, index, and query high-dimensional numerical vectors. These vectors (typically generated by embedding models) represent the semantic meaning of unstructured data like text, images, and audio.

Unlike relational databases (which perform exact matching on rows and columns), vector databases perform Approximate Nearest Neighbors (ANN) search to retrieve content based on semantic similarity.

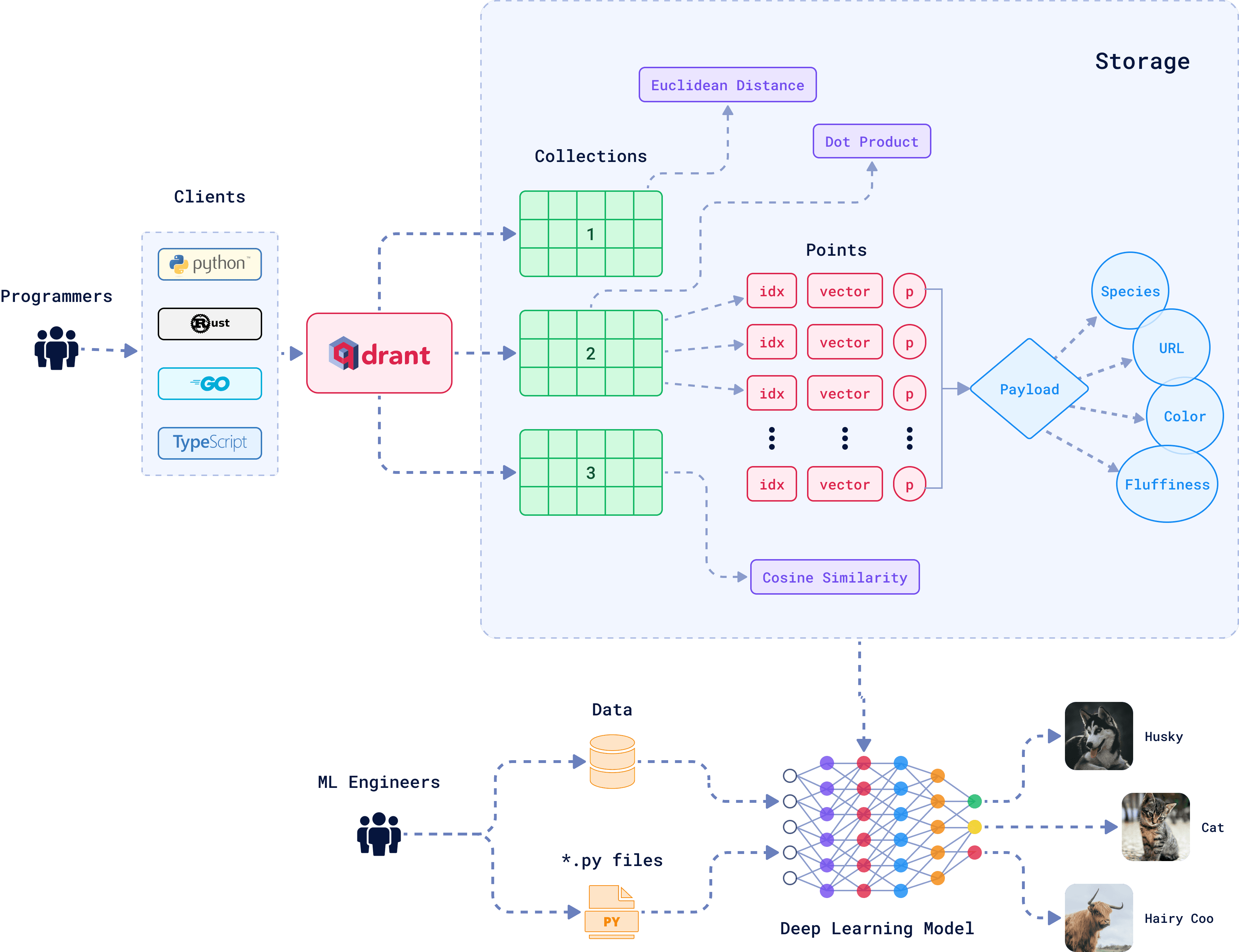

🏗️ 1. Internal Database Architecture

A production-grade vector database decouples the ingestion pipeline (Write Path) from the query execution coordinator (Read Path) to maintain low latency and high availability.

Ingestion and Query Execution Pipeline

Architectural Subsystems

1. Write-Ahead Log (WAL): Persists incoming write operations to disk immediately, ensuring durability before indexes are rebuilt in memory.
2. In-Memory Buffer (MemTable): Accumulates vector points. Once the buffer reaches a threshold size, it is flushed to disk as a immutable read-only segment.
3. Compactor: Performs background merges of smaller segments into larger ones, cleaning up deleted records and optimizing graph traversals.

📊 2. Embedding Models & Dimension Strategy

Selecting the right embedding model dictates database storage requirements, retrieval quality, and system latency.

Dimension vs. Performance Trade-off

Larger dimension sizes capture more granular semantic details but increase indexing latency and index memory usage. Using models supporting Matryoshka Representation Learning (MRL) (such as OpenAI’s text-embedding-3 models) allows you to truncate the dimensions (e.g., from 3072 down to 1024) with negligible recall accuracy loss, saving up to 66% on database storage costs.

🏢 3. Multi-Tenant Vector Architectures

Enterprise SaaS systems must enforce tenant data isolation. When designing multi-tenancy in vector databases, engineers choose between three isolation topologies:

Architectural Isolation Trade-offs

🔌 4. Client Connection Pooling

To prevent socket exhaustion and minimize TCP/TLS handshakes under high query loads, always implement connection pooling and client reuse. Below is a Python implementation utilizing qdrant-client configured for thread-safe concurrent connections:

from qdrant_client import QdrantClient
from qdrant_client.http import models
import httpx
import os

class QdrantConnectionManager:
    _instance = None

    def __new__(cls):
        if cls._instance is None:
            # Configure custom connection limits for high concurrent load
            limits = httpx.Limits(
                max_keepalive_connections=50,  # Maintain idle persistent connections
                max_connections=100,           # Upper boundary limit on parallel threads
                keepalive_expiry=30.0          # Drop stale sockets after 30 seconds
            )

            # Setup custom HTTP/gRPC client configuration
            http_client = httpx.Client(limits=limits, timeout=5.0)

            cls._instance = QdrantClient(
                url=os.getenv("QDRANT_URL", "http://localhost:6333"),
                api_key=os.getenv("QDRANT_API_KEY"),
                timeout=5.0,
                grpc_port=6334,
                prefer_grpc=True,              # Force high-throughput binary connection
                http2=True,                    # Use HTTP/2 multiplexing
            )

            # Inject custom transport configuration
            cls._instance._client = http_client

        return cls._instance

# Example multi-threaded usage:
# qdrant_client = QdrantConnectionManager()
# results = qdrant_client.search(collection_name="docs", query_vector=[0.1, 0.2, ...], limit=5)

💸 5. Production Cost Optimization

Storing dense raw float32 vectors requires significant memory. A cluster holding 100,000,000 vectors of 1536 dimensions requires 100M * 1536 * 4 bytes = 614.4 GB of RAM just to keep the vectors in memory.

To run production workloads cost-effectively, employ compression and quantization:

Vector Compression (Quantization)

1. Scalar Quantization (SQ): Maps float32 numbers to 8-bit integers (int8), cutting memory consumption by 75%.
2. Product Quantization (PQ): Splits the high-dimensional vector into smaller sub-vectors, clustering each sub-vector and storing only centroid IDs (1 byte each). Can reduce memory footprint by up to 95% at the cost of a small loss in recall accuracy.

Optimization Trade-off Matrix

🛠️ 6. 2026 Recommended Production Stacks

These curated stacks represent the most robust options based on system scale and security constraints:

1. The Startup / Lean Stack

• Vector Database: PostgreSQL with pgvector extension.
• Embedding Model: OpenAI text-embedding-3-small (dimension 1536 or truncated to 512).
• Retrieval Pipeline: Hybrid pgvector + pg_trgm (sparse) search fused via SQL.
• Rationale: Keeps the architecture simple. Minimizes data egress costs and avoids running a separate database server. Stays within a single transactional SQL database.

2. The Growth Stage / Scale Stack

• Vector Database: Qdrant (self-hosted on Kubernetes or Qdrant Cloud).
• Embedding Model: Voyage-3 or BGE-M3 (run locally on dedicated Triton GPU servers).
• Retriever & Reranker: Dense + Sparse hybrid Qdrant query reranked via BGE-Reranker-v2.
• Rationale: High throughput, support for complex dynamic metadata filters, and low latency. Segment compaction and native segment quantization keep memory costs low as document volume crosses 50M.

3. The Enterprise / Secure Stack

• Vector Database: Milvus (on-premise distributed deploy) or Pinecone (Enterprise VPC).
• Embedding Model: Cohere Embed v3 or E5-mistral-7b-instruct.
• Architecture: Dedicated cluster per tier, strict multi-tenant network policies, OTel trajectory tracing.
• Rationale: Physically isolates customer data across clusters, enforces encryption-at-rest keys, and matches scale demands for billions of vectors under SLA constraints.
